Notice: It is recommended to cool the machine in a cooling state before charging for a better charging effect.
When Using:
To activate the staple gun after charging:
1st, Restart ON/OFF Switch; 2nd, push the Trigger; 3rd, imitate the action of nailing; Then the indicator light will turn green and ready for use.
The Greenlight flash every 4 seconds (In standby mode ), to activate the staple gun:
1st, Restart ON/OFF Switch; 2nd, push the Trigger; 3rd, imitate the action of nailing; Then the indicator light will turn green and ready for use.
Red and green lights flash alternately - fault alarm (low power or jammed by a staple):
How to fix it: 1st, restart the ON/OFF Switch; 2th, Remove the staples and reload; 3rd, If step 1 and 2 doesn't work, it means the staple gun is low power. Please fully charge and try again.
Yellow light on - High battery temperature:
How to fix it: stop working and let the staple gun cool down until the yellow light turns to green

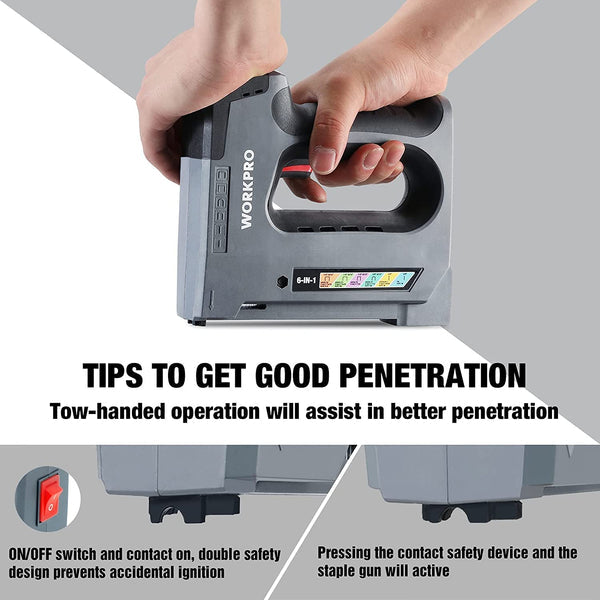

ATTENTION: To switch the staple gun ON by pressing the button "-" down, to switch the staple gun OFF by pressing the button "O" down.
The MAXIMUM wood density is 37.45 lb/ft3. It's highly recommended to fully recharge the staple gun after use and recharge once time per 2-3months will prolong the life of the staple gun if the staple gun is not used often.
